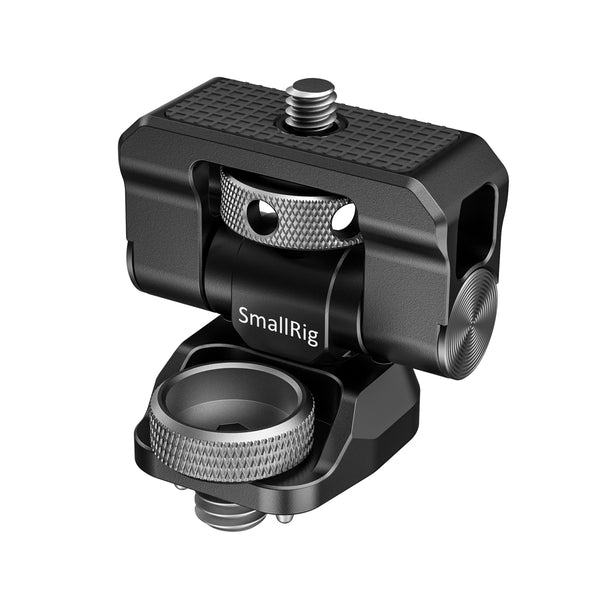

SmallRig Swivel and Tilt Monitor Mount with ARRI Locating Pins - BSE2348

Availability: Out Of Stock
SKU: SMR0247

SmallRig Swivel and Tilt Monitor Mount with Arri Locating Pins BSE2348 is designed to hold your monitor onto the camera cage or other mounting system features arri 3/8'' locating the hole. It features arri 3/8'' locating pins on the bottom and 1/4”-20 screw on the top for monitor, light or microphone. The holder enables to swivel 360° sideways and tilts 170° which allows holding your monitor onto any position without using tools. The robust mount is CNC-Machined Aluminum and can support 5'' and 7'' monitor up to 1.2kg, for vertical (90°) payload, it can hold accessories up to 2.5kg. The top features rubber pad to protect your monitor and light from scratch. The thumbscrew features holes for hex spanner to secure it tightly and ensure your monitor safe.

Note1: Maximum payload: 1.2kg; Vertical 90° Payload: 2.5kg
Note2: Please do use the hex spanner to re-tighten the thumbscrew to ensure safe.
Note3: Please attach your monitor or light to the camera body first before adjusting the angle of the monitor mount.

Key Features:

  • Supports 5'' and 7” Monitor up to 1.2kg
  • Swivel 360° and Tilt 170° with Free-Stop in Any Position.
  • Features holes on Thumbscrews for Hex Spanner
  • Rubber Pad on the Top to Prevent Scratching
  • Arri Locating Pins on the Bottom to Prevent Twisting

Work With:

  • SmallHD Focus Series
  • SmallHD Focus OLED Series
  • SmallHD UltraBright Series
  • SmallHD 500 Series, 700 Series
  • Atomos Ninja Series
  • Atomos Shogun Flame
  • Blackmagic Video Assist 5''
  • Other 5'' or 7'' Monitor Kit Weights less than 1.2kg

Packing List:

  • 1 x Monitor Mount
  • 1 x Hex Spanner

Technical Data:

  • Product Dimensions: 46 x 39.9x 34mm
  • Package Dimensions: 76 x63 x 40mm
  • Net Weight: 75g
  • Package Weight: 106g
  • Material(s): Aluminum Alloy
