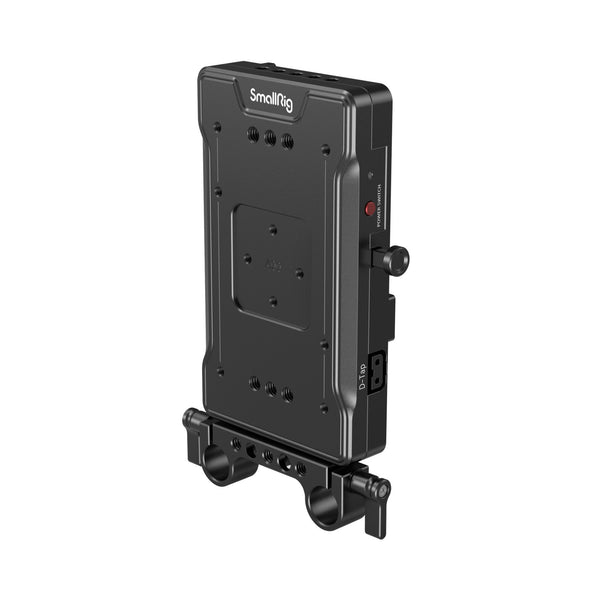

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp - 3203B

Availability: 1 In Stock
SKU: SMR0493

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B can quickly mount onto a 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input/output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input/output (14.8V) ports; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicates the working status and fast/slow charging mode; the power on/off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Certification: Quality Inspection Report / FCC / UKCA / CE / RoHS / ISED

Note: Product weight and dimensions may have measurement errors.


  • Do not use it in a damp environment to avoid short circuits.
  • When the indicator light keeps blinking, it means the working temperature exceeds 65℃. Please suspend its use.
  • Please do not drop the product, or use it under high temperatures or when a short circuit occurs.

Functions Description:

  • Charging / Discharging: USB-C charging
  • Indicator Light: orange light—slow charging/discharging, ice blue light—fast charging/discharging
  • Power Indicator Light:
  • Light on—powered on
  • light off—powered off
  • light flashing—working temperature exceeds 65℃
  • Power on / off Button:
  • Power on—tap the button; power off—long press the button for 2 seconds
  • D-Tap, USB-A, and DC output are unavailable after powering off
  • D-Tap input and USB-C input/output available after powering off

Key Features:

  • Standard V-mount, compatible with most V-mount batteries.
  • PD protocol compatible USB-C input/output (65W Max.) port and QC protocol compatible USB-A output (36W Max.) port for powering cell phones, image transmitters, etc.
  • D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port.
  • Quickly mounts onto 15mm LWS rod system.
  • 1/4"-20 threaded holes for dual rod clamp and other accessories.

Work With:

  • V-Mount Battery

Packing List:

  • V-Mount Battery Adapter Plate (Advanced Version) x 1
  • Dual Rod Clamp x 1
  • Hex Spanner x 1
  • Screw x 4
  • User Manual

Technical Data:

  • Product Dimensions: 16.87 × 10.8 × 3.3 cm
  • Product Weight: 337±5g
  • Battery Compatibility: V-Mount Battery
  • Dual Rod Diameter: 15mm (for 15mm LWS rod system)
  • Battery Voltage: 11.0V~16.8V
  • Battery Rated Capacity: 3500mAh~20000mAh / 14.8V
  • Cut-off Voltage: 11.0V
  • Input Voltage (Max.): 16.8V
  • Working Power (Max.): ≤ battery power (subject to battery capacity)
  • Total Maximum Power: Discharging: 271W (Max.)
  • D-Tap Rated Input / Output Current: 5A
  • D-Tap Input / Output Current (Max.): 10A (subject to power adapter)
  • D-Tap Input Voltage: 11.0V~16.8V
  • USB-A Output Power: 36W (Max.)
  • USB-A Output Protocol: QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
  • USB-C Input Power: 65W (Max.)
  • USB-C Output Power: 65W (Max.)
  • USB-C Input / Output Protocol: PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
  • DC1 Output: 8.0V / 3A (Max.)
  • DC2 Output: 12V / 3A (Max.)
  • DC3 Output: 12V / 3A (Max.)
  • DC Overcurrent Protection: ≥4.1A
  • Material(s): Aluminum Alloy
