SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp - 3016

£42.90
Availability: 1 In Stock
SKU: SMR0370
SmallRig

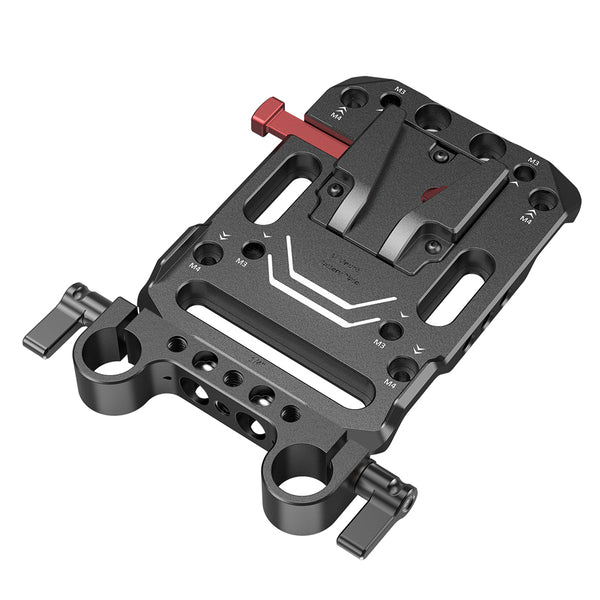

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.

Note:

  • No V-Lock part (male) was provided with the plate.
  • This is purely a mounting solution for a V-mount battery — no power ports on the plate.

Key Features:

  • The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
  • Two stoppers prevent the battery from twisting when attached.
  • It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways.
  • The Plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
  • It's compatible with the Blackmagic URSA mini.

Compatibility:

  • The plate fits most V mount batteries except PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

Packing List:

  • 1 x V Mount Battery Plate
  • 1 x Dual 15mm Rod Clamp
  • 3 x Allen Wrench
  • 4 x 1/4-20" Screw (short)
  • 2 x 1/4-20" Screw (long)
  • 4 x M4 Screw
  • 4 x M3 Screw

Techique Data:

  • Product Dimensions: 132.5 x 108 x 17mm
  • Package Dimensions: 135 x 100 x 55mm
  • Net Weight: 190g±5g
  • Package Weight: 242g±5g
  • Material(s): Aluminum Alloy
